The Blue Ribbon

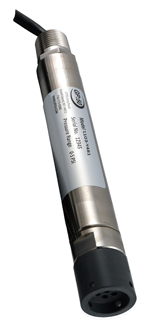

"Birdcage™" Submersible Pressure Transducer:

More Info about the

BullDog Pump Controller















Output and Load Limitations
 - 4-20 mADC. 2 wire twisted pair grounded shield cable @ 0.042 ohm/ft.
- FM approved Intrinsically Safe (see below*)
- Unit meets EMI/RFI protection STandards for Mil-Std 461/462 Rev. E
- Response Time: <5 ms with EMI/RFI

Accuracy
- Static Accuracy:  <0.25% FSO
 - 1 yr. Stability:  <0.20% FSO
 - Error Band (w/temp):  <0.50% BFSL FSO

Temperature

 - Temperature Compensation:   +35 Deg F to +125 Deg F
 - Operating Temperature:  -20 Deg F to +190 Deg F
 - Storage Temperature:  -65 Deg F to +250 Deg F

Electrical Connection and Protection
 - Variable length of vented watertight polyurethane jacketed cable - 40 ft standard
- EMI/RFI protected, shield is ground to transducer case through cable connection
- Unit meets FM approved I/S and is surge protected with random lightning arrest

Material
 - Wetted Part  316 SS with Inconnel Sensor
 - Body:  300 SS Explosion Resistant
 - Cable:  Polyurethane Jacketed Cable

Ranges
 - 5 psi (11.5 feet of head)
- 7.5 psi (17.3 feet of head)
- 10 psi (23.1 feet of head)
(other standard ranges available from factory stock)

The Patented Blue Ribbon "Birdcage"™
 - Hyett model 42MW 316 S/S chemical seal
- Top half only, 1/2" NPT thread connected
- Welded 316 S/S diaphragm - .13 cu. in. displacement
- 304 S/S stand-off ring, spacers, nuts and bolts
- Glycerine filled. Other fluids available
